Under Cover Contexts and the Big Frame-Up

Nobody expects the Smalltalk language system. Our chief weapon is polymorphism… polymorphism and objects…objects and polymorphism. Our two weapons are objects and polymorphism… and inheritance… Our three weapons are objects, and polymorphism and inheritance… and an almost fanatical devotion to contexts…
Our four…no…
Amongst our weapons… Amongst our weaponry… are such elements as objects, po…
I’ll come in again.

Contexts are Smalltalk’s first-class activation records. thisContext is the “reserved word” (technically, pseudo-variable) for the current activation record. Try “thisContext inspect” and see what you get. Then try “thisContext inspect. self halt” and see what you get.

Contexts are fabulous weapons, even better programming building blocks, and horribly expensive. How do I love contexts? Let me count the ways…

Contexts mean Smalltalk has had edit-and-continue debugging since the 1970’s.
Contexts allow the implemention of an exception system with no additional support from the virtual machine.
Contexts allow the implemention of dynamic binding, co-routines, tail-recursion-elimination and backtracking with no additional support from the virtual machine.
Contexts enable process persistence and migration.
Contexts allow implementation of continuations (full, delimited/partial or otherwise) without additional VM support (and hence the Seaside web framework).
Contexts are consistent (consistent) with the rest of the “objects all the way down” system, providing activations as first-class objects.
Because they’re there.

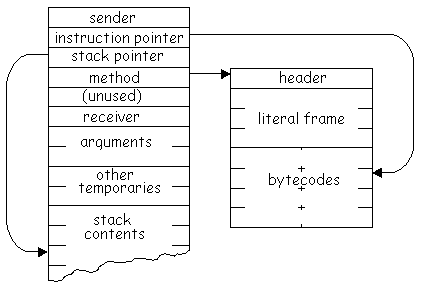

What does a context look like?

The method is the code to execute. The stack is of finite size, guaranteed by the bytecode compiler. The sender is the caller context, providing a simple and flexible “spaghetti stack” scheme.

But a naive implementation has to allocate a context on each send, move the receiver and arguments from the stack of the caller context to that of the callee, and assign the callee’s sender with the caller. For essentially every return the garbage collector eventually has to reclaim, and every return has to nil the sender and instruction pointer fields of, the context being returned from. Here’s the blue book code for method activation:

activateNewMethod

| contextSize newContext newReceiver |
        (
self largeContextFlagOf: newMethod) = 1

ifTrue: [contextSize := 32 + TempFrameStart]

ifFalse: [contextSize := 12 + TempFrameStart].

newContext := memory

instantiateClass: ClassMethodContextPointer

withPointers: contextSize.
        memory
storePointer: SenderIndex

ofObject: newContext

withValue: activeContext.

self storeInstructionPointerValue: (self initialInstructionPointerOfMethod: newMethod)

inContext: newContext.

self storeStackPointerValue: (self temporaryCountof: newMethod)

inContext: newContext.
        memory
storePointer: MethodIndex

ofObject: newContext

withValue: newMethod.

self transfer: argumentCount + 1

fromIndex: stackPointer argumentCount

ofObject: activeContext

toIndex: ReceiverIndex

ofObject: newContext.

self pop: argumentCount + 1.

self newActiveContext: newContext

If you want to stay with this scheme but make it faster then you could do worse than the current Squeak implementation:

activateNewMethod

| newContext methodHeader initialIP tempCount nilOop where |

        methodHeader := self headerOf: newMethod.

newContext := self allocateOrRecycleContext: (methodHeader bitAnd: LargeContextBit).

        initialIP := ((LiteralStart + (self literalCountOfHeader: methodHeader)) * BytesPerWord) + 1.

tempCount := self temporaryCountOfMethodHeader: methodHeader.

        “Assume: newContext will be recorded as a root if necessary by the
         call to newActiveContext: below, so we can use unchecked stores.”

        where := newContext + BaseHeaderSize.

self longAt: where + (SenderIndex << ShiftForWord) put: activeContext.

self longAt: where + (InstructionPointerIndex << ShiftForWord) put: (self integerObjectOf: initialIP).

self longAt: where + (StackPointerIndex << ShiftForWord) put: (self integerObjectOf: tempCount).

self longAt: where + (MethodIndex << ShiftForWord) put: newMethod.

self longAt: where + (ClosureIndex << ShiftForWord) put: nilObj.

        “Copy the reciever and arguments…”

0 to: argumentCount do:
                 [:
i | self longAt: where + ((ReceiverIndex+i) << ShiftForWord) put: (self stackValue: argumentCount-i)].

        “clear remaining temps to nil in case it has been recycled”

nilOop := nilObj.
        argumentCount
+1+ReceiverIndex to: tempCount+ReceiverIndex do:
                 [:
i | self longAt: where + (i << ShiftForWord) put: nilOop].

        self pop: argumentCount + 1.
        reclaimableContextCount
:= reclaimableContextCount + 1.

self newActiveContext: newContext

The variable reclaimableContextCount counts how many contexts have been allocated that are not referenced by other objects and so may eagerly be reclaimed on return. Whenever thisContext is referenced or a block created reclaimableContextCount gets set to zero. On return if reclaimableContextCount is non-zero the returning context is reclaimed and reclaimableContextCount is decremented.

Again in a naive implementation pushing an object on the stack involves a store check. David Ungar’s Berkeley Smalltalk nilled out the stack slot when popping off an entry so that a push would only have to increase the reference count of the object pushed instead of also decrementing the count of the object overwritten. The Squeak VM uses a generational collector so there is no reference counting but it does need to make the context a root if it is old (in newActiveContext:) to avoid the store-check on every push. It also carefully protects against access beyond the stack pointer through checks in the at: and at:put: primitives so that allocateOrRecycleContext: does not have to initialize the stack with nils.

But these are all desperate attempts at mitigating the cost of a structure which for the most part is used in last-in, first-out (LIFO) order and only occasionally used to do the cool stuff we love it for. So here’s my evolution of Peter Deutsch’s and Allan Schiffman’s original scheme for having one’s cake and eating it too, for providing the illusion of ever-present contexts while only creating them when necessary. This is the fourth variant I’ve come up with, a hybrid of my earlier schemes and Peter and Allan’s, and like any hybrid it is vigourous and healthy :) What’s really different about my scheme, unlike Peter and Allan’s, is that contexts don’t get divorced when you send them a message, a cryptic comment I’ll explain presently.

Stack Organization

The basic idea is to organize method activations using a stack discipline and to allow these to be accessed through contexts. The stack discipline is no different to that in conventonal language implementations. Outgoing arguments get pushed on the stack and on activation a frame is built immediately following the arguments which it references via the stack or frame pointer. On return the frame is popped off the stack and the stack pointer and frame pointer revert to referencing the caller frame; no different to stack management in e.g. Pascal or C. The wrinkle is in allowing context objects to be created and manipulated as if they were conventional contexts even though they are stand-ins for underlying stack frames.

Let’s look at some activation/return sequences to understand it properly. Here’s a stack which has some arguments for a send pushed on it by some already active method, it is about to send + in DateAndTime today + (Duration weeks: 1).


Here’s the DateAndTime>>+ method:

DateAndTime methods for ansi protocol
+ operand

“operand conforms to protocol Duration”

        | ticks |

ticks := self ticks + (operand asDuration ticks) .

        ^ self class basicNew

ticks: ticks

offset: self offset;

yourself

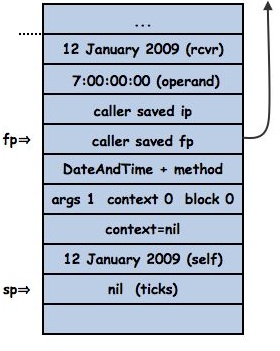

When the message is sent the intetpreter looks up #+ in dateAndTime and finds the method. To build the frame for the method the interpreter pushes its current instruction pointer and frame pointer, saving them for the eventual return, then pushes the method, a flag word and a slot to hold the frame’s context if it ever needs one. Finally it pushes the receiver (again) and initializes temporaries (in this case just “ticks”) to nil.

all of which is done by the following method

StackInterpreter methods for message sending
internalActivateNewMethod

| methodHeader numTemps rcvr errorCode |
        <inline:
true>

        methodHeader := self headerOf: newMethod.

numTemps := self tempCountOfMethodHeader: methodHeader.

        rcvr := self internalStackValue: argumentCount. “could new rcvr be set at point of send?”

        self internalPush: localIP.

self internalPush: localFP.
        localFP
:= localSP.

self internalPush: newMethod.
        method
:= newMethod.

self internalPush: (self

encodeFrameFieldHasContext: false

isBlock: false

numArgs: (self argumentCountOfMethodHeader: methodHeader)).

self internalPush: nilObj. “FxThisContext field”

self internalPush: rcvr.

        “Initialize temps…”
        argumentCount
+ 1 to: numTemps do:
                 [:
i | self internalPush: nilObj].

        “-1 to account for pre-increment in fetchNextBytecode”
        localIP
:= self pointerForOop: (self initialPCForHeader: methodHeader method: newMethod) 1

The flag word, tells the interpreter three things, how many arguments the method has, whether the context field is valid or not and whether the frame is a method or block activation.

Each of these fields is a single byte. The interpreter uses the args field to decide where to find a temporary variable. The bytecode set uses push/Store/StorePopTemporary bytecodes to access both arguments and temporaries since in a context the arguments and temporaries are adjacent. But in this stack organization the arguments are at the top of the frame and the temporaries below, so the argument count determines where to find temporaries and hence having fast access to the argument count is essential to access arguments and temporaries with acceptable speed:

StackInterpreter methods for frame access
frameNumArgs: theFP

“See encodeFrameFieldHasContext:numArgs:”
        <inline:
true>
        <var:
#theFP type: #’char *’>

^stackPages byteAt: theFP + FoxFrameFlags + 1

StackInterpreter methods for internal interpreter access
temporary: offset in: theFP

“See StackInterpreter class>>initializeFrameIndices”

| frameNumArgs |
        <inline:
true>
        <var:
#theFP type: #’char *’>

^offset < (frameNumArgs := self frameNumArgs: theFP)

ifTrue: [stackPages longAt: theFP + FoxCallerSavedIP + ((frameNumArgs offset) * BytesPerWord)]

ifFalse: [stackPages longAt: theFP + FoxReceiver BytesPerWord + ((frameNumArgs offset) * BytesPerWord)]

internalPush: object

“In the StackInterpreter stacks grow down.”
        stackPages
longAtPointer: (localSP := localSP BytesPerWord) put: object

StackInterpreter methods for stack bytecodes
pushTemporaryVariable: temporaryIndex

self internalPush: (self temporary: temporaryIndex in: localFP)

pushTemporaryVariableBytecode
        <expandCases>

self fetchNextBytecode.

“this bytecode will be expanded so that refs to currentBytecode below will be constant”

self pushTemporaryVariable: (currentBytecode bitAnd: 16rF)

The receiver is pushed also, partly for reasons of efficiency and, as we’ll see later, to support blocks. Pushing the receiver after the context field allows the interpreter to find the receiver at a known offset relative to the frame pointer, avoiding having to fetch frameNumArgs for instance variable access:


StackInterpreter methods for frame access
frameReceiver: theFP
        <inline:
true>
        <var:
#theFP type: #’char *’>

^stackPages longAt: theFP + FoxReceiver

StackInterpreter methods for stack bytecodes
pushReceiverVariable: fieldIndex

self internalPush: (self fetchPointer: fieldIndex ofObject: self receiver)

pushReceiverVariableBytecode
        <expandCases>

self fetchNextBytecode.

“this bytecode will be expanded so that refs to currentBytecode below will be constant”

self pushReceiverVariable: (currentBytecode bitAnd: 16rF)

We arrange that stacks grow down because in the JIT they definitely will. Call, return, push and pop instructions on CISC processors (notably x86/IA32) define that stacks grow downwards, and the JIT will reuse much of the StackInterpreter’s machinery. Whenever I talk about a frame being above another one I mean it is later, actually at a lower address, but logically above, towards the head frame and away from the base frame; the “hottest” element on the stack is still called the top of stack.

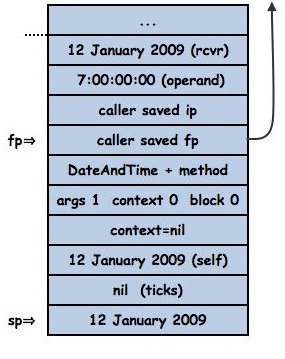

Continuing with the execution once DateAndTime>>+ has pushed self (12 January 2009) it is ready to send ticks:

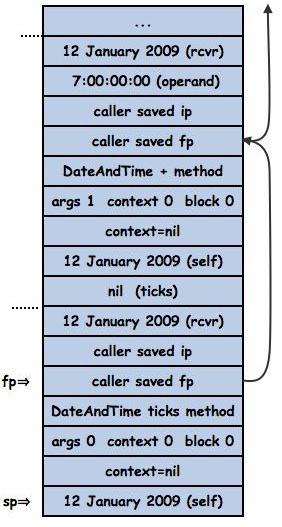

The pushed 12 January 2009 becomes the receiver of the new activation of DateAndTime>>#ticks. The saved instruction pointer is the pointer to the bytecode following the send of ticks. The saved frame pointer is the frame pointer for the DateAndTime>>#+ frame, then comes the DateAndTime>>#ticks method, a flag word indicating no arguments, an invalid context field and the 12 January 2009 receiver:

The ticks method will eventually compute #(2454844 0 0)

DateAndTime methods for private
ticks

“Private – answer an array with our instance variables. Assumed to be UTC “

        ^ Array with: jdn with: seconds with: nanos

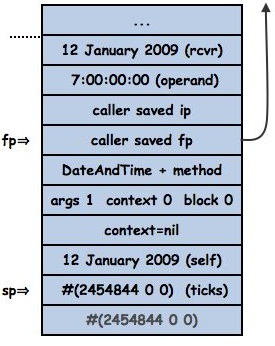

Its return bytecode dismantles the frame, assigning the frame pointer to the stack pointer, popping off the saved frame pointer into the frame pointer, the caller’s saved ip into the instruction pointer, removing the arguments, and pushing the result:

which is done by the following method:
commonCallerReturn

“Return to the previous context/frame (sender for method activations, caller for block activations).”

<sharedCodeNamed: ‘commonCallerReturn’ inCase: 125> “returnTopFromBlock”

        localIP := self frameCallerSavedIP: localFP.
        localSP
:= localFP + (self frameStackedReceiverOffset: localFP).
        localFP
:=  self frameCallerFP: localFP.
        stackPages
longAt: localSP put: localReturnValue.

self fetchNextBytecode.
        method
:= self frameMethod: localFP

and the bytecode after the send of #ticks in DateAndTime>>#+ pops and stores the result into the ticks temporary, leaving us where we started but with ticks holding self ticks. Look ma, no contexts.

Context to Stack Mapping

Let’s add closures to the mix so we can see contexts related to stack frames. A closure has an explicit reference to its enclosing context, which in our new scheme has to be mapped to a stack frame. Let’s evaluate

        ‘Hi!’ detect: [:char| ‘!?’ includes: char] ifNone: [^#unemphatic]

Here’s Collection>>#detect:ifNone:

Collection methods for enumerating
detect: aBlock ifNone: exceptionBlock

“Evaluate aBlock with each of the receiver’s elements as the argument.
         Answer the first element for which aBlock evaluates to true. If none
         evaluate to true, then evaluate the argument, exceptionBlock.”


self do: [:each | (aBlock value: each) ifTrue: [^ each]].

^ exceptionBlock value

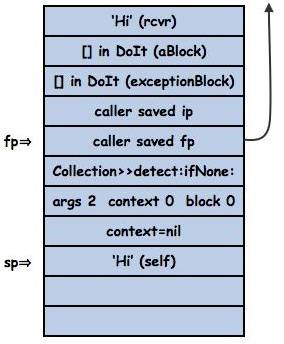

On activation of Collection>>#detect:ifNone: the top frame on the stack looks like this

The [:each | (aBlock value: each) ifTrue: [^ each]] needs an outerContext but it is executing within the frame activation of Collection>>#detect:ifNone:. So when the block is created we also create a context that is a proxy for the frame (a better reference is here). If the block refers to self or an instance variable it needs to get at the receiver of the outerContext and if it executes the uparrow-return it must return from the Collection>>#detect:ifNone: frame.

To avoid chaos we need a one-to-one relationship between frames and contexts; hence the flag in the frame which ensures we only create one context for a frame. In this implementation we say that a frame is married to a context, and there’s no polygamy allowed. Given that a context could be referenced long after its frame exits we also have to detect if a context has been widowed, and convert it into a stable, but returned-from context. As we’ll see frames and contexts can get divorced (although that’s fatal for the frame) and contexts can re-marry, but frames only marry once if at all; clearly contexts are female, and frames are rather frail males; no widowers here.

To implement non-local return correctly we must be able to determine if a context is single (a normal heap context, not associated with a frame), married or widowed, and, if married, to locate its spouse frame.

At the least we need a pointer from the context to its spouse. For this we use the sender field. The sender field of a context is always either another context or nil (ignoring wilful and inevitably fatal abuse by the programmer; you can assign a Point, or any other object, to the sender of thisContext but it’ll end your session). So we mark married contexts by storing the frame pointer of their spouse frame with the SmallInteger tag bit set in the sender field. Frames are always word-aligned so frame pointer least significant bits are always zero.

StackInterpreter methods for frame access
isMarriedOrWidowedContext: aContext

^self isIntegerObject: (self fetchPointer: SenderIndex ofObject: aContext)

ensureFrameIsMarried: theFP
        <inline:
true>
        <var:
#theFP type: #’char *’>
        (
self frameHasContext: theFP) ifTrue:
                 [
^self frameContext: theFP].

        ^self marryFrame: theFP

marryFrame: theFP

“Marry an unmarried frame. This means creating a spouse context
         initialized with a subset of the frame’s state (state through the last argument)
         that references the frame.”


| theContext methodHeader byteSize tempCount closureOrNil |
        <inline:
false>
        <var:
#theFP type: #’char *’>

self assert: (self frameHasContext: theFP) not.

        methodHeader := self headerOf: (self frameMethod: theFP).

        “This phrase is merely determining how much of the stack to initialize the context with.
         It is a lot of work for dubious benefit. Perhaps blocks could encode their num temps in frame flags.”

        (
self frameIsBlockActivation: theFP)

ifTrue: [| numBlockArgs |

numBlockArgs := self frameNumArgs: theFP.

closureOrNil := self pushedReceiverOrClosureOfFrame: theFP.

tempCount := numBlockArgs +(self fetchWordLengthOf: closureOrNil) ClosureFirstCopiedValueIndex]

ifFalse: [closureOrNil := nilObj.

tempCount := self tempCountOfMethodHeader: methodHeader].

        byteSize := (methodHeader bitAnd: LargeContextBit) ~= 0

ifTrue: [LargeContextSize]

ifFalse: [SmallContextSize].

theContext := self eeInstantiateContext: (self splObj: ClassMethodContext) sizeInBytes: byteSize.

“Mark context as married by setting its sender to the frame pointer plus SmallInteger
         tags and the InstructionPointer to the saved fp (which ensures correct alignment
         w.r.t. the frame when we check for validity)”


self storePointerUnchecked: SenderIndex

ofObject: theContext

withValue: (self withSmallIntegerTags: theFP).

self storePointerUnchecked: InstructionPointerIndex

ofObject: theContext

withValue: (self withSmallIntegerTags: (self frameCallerFP: theFP)).

self storePointerUnchecked: StackPointerIndex

ofObject: theContext

withValue: (self integerObjectOf: tempCount).

self storePointerUnchecked: MethodIndex

ofObject: theContext

withValue: (self frameMethod: theFP).

self storePointerUnchecked: ClosureIndex ofObject: theContext withValue: closureOrNil.

self storePointerUnchecked: ReceiverIndex

ofObject: theContext

withValue: (self frameReceiver: theFP).

1 to: tempCount do:
                 [:
i|

self storePointerUnchecked: ReceiverIndex + i

ofObject: theContext

withValue: (self temporary: i 1 in: theFP)].

        stackPages longAt: theFP + FoxThisContext put: theContext.
        stackPages
byteAt: theFP + FoxFrameFlags + 2 put: 1.

        self assert: (self frameHasContext: theFP).

self assert: (self frameOfMarriedContext: theContext) == theFP.

        ^theContext

I think marryFrame: contains a bug in that it copies all temporaries into the spouse context but it needs only to copy the receiver and arguments. But that’s how the code stands today. Mea culpa.

Before we delve into the details of divorce and widowhood, and how we hide all this matrimonial activity from Smalltalk let’s finish activating the block within Collection>>#detect:ifNone:. Collection>>#detect:ifNone: sends do: and in this case SequenceableCollection>>#do: will activate the block:

SequenceableCollection methods for enumerating
do: aBlock

“Refer to the comment in Collection>>do:.”

1 to: self size do:
                 [:
index | aBlock value: (self at: index)]

The BlockClosure>>value[:value:…] primitives create a frame for the block, setting the “is block” flag, push the method and receiver in the outerContext and push any copied values.



In the block activation the receiver of the value: message, the [] in
detect:ifNone: that do: pushed on the stack, is not the receiver (‘Hi’) of detect:ifNone:. If we need to marry a block activation then we can find its closureOrNil on the stack in the same position as the receiver for normal sends. But as far as accessing self and its instance variables blocks and methods are the same; the field following the context field is always the receiver of the home method activation.

StackInterpreter methods for control primitives
activateNewClosureMethod: blockClosure numArgs: numArgs

“Similar to activateNewMethod but for Closure and newMethod.”

| numCopied outerContext theMethod closureIP |
        <inline:
true>

outerContext := self fetchPointer: ClosureOuterContextIndex ofObject: blockClosure.

numCopied := (self fetchWordLengthOf: blockClosure) ClosureFirstCopiedValueIndex.

        theMethod := self fetchPointer: MethodIndex ofObject: outerContext.

self push: instructionPointer.

self push: framePointer.
        framePointer
:= stackPointer.

self push: theMethod.

self push: (self encodeFrameFieldHasContext: false isBlock: true numArgs: numArgs).

self push: nilObj. “FxThisContext field”

self push: (self fetchPointer: ReceiverIndex ofObject: outerContext).

        “Copy the copied values…”

0 to: numCopied 1 do:
                 [:
i|

self push: (self

fetchPointer: i + ClosureFirstCopiedValueIndex

ofObject: blockClosure)].

        self assert: (self frameIsBlockActivation: framePointer).

self assert: (self frameHasContext: framePointer) not.

        “The initial instructions in the block nil-out remaining temps.”

        “the instruction pointer is a pointer variable equal to
        method oop + ip + BaseHeaderSize
        -1 for 0-based addressing of fetchByte
        -1 because it gets incremented BEFORE fetching currentByte”


closureIP := self quickFetchInteger: ClosureStartPCIndex ofObject: blockClosure.
        instructionPointer
:= theMethod + closureIP + BaseHeaderSize 2.
        method
:= theMethod



Stack Pages



So far I’ve left out how the stack is shared amongst Smalltalk’s light-weight processes, and how we maintain Smalltalk’s immunity from stack overflow. In a context-based Smalltalk the only limit to the depth of a call chain is available heap memory in which to store contexts. In a blue-book Smalltalk implementation infinite recursion manifests itself as a low-space condition. Smalltalk provides light-weight processes, which are simply chains of contexts, and applications like Croquet can create thousands a second and have hundreds active at any one time. Creating a new process involves creating a process object and a context or two. In using a stack we need to both share it effectively between processes and keep process creation cheap.

Pater Deutsch’s solution is to divide up the stack into pages, each page capable of holding enough contexts so that we’re not switching stack pages all the time and few enough such that moving all the frames on the page into the heap in the form of contexts so the page can be reused doesn’t take too long. As we’ll see with the JIT this does introduce some complications calling run-time routines on the C stack, but on balance it’s an excellent solution and I’m sticking with it. So the stack is in fact composed of pages of a fixed size determined statically and quantity determined at start-up. I’m currently using 1024 byte stack pages, which have room for about 20 “average” activations, which is a little tight and so will probably move to 2048 byte pages when I tune the JIT. Current;y inside Qwaq we’re using 192 stack pages.

Running on a stack page of a small size introduces three complications, stack page overflow, stack page underflow, and linking stack pages together. We handle overflow by checking a stackLimit on every frame build. So in full detail internalActivateNewMethod is as follows, with the added complications of passing any primitive error code and of checking for stack overflow, which is right at the end of the method:

StackInterpreter methods for message sending
internalActivateNewMethod

| methodHeader numTemps rcvr errorCode |
        <inline:
true>

        methodHeader := self headerOf: newMethod.

numTemps := self tempCountOfMethodHeader: methodHeader.

        rcvr := self internalStackValue: argumentCount. “could new rcvr be set at point of send?”

        self internalPush: localIP.

self internalPush: localFP.
        localFP
:= localSP.

self internalPush: newMethod.
        method
:= newMethod.

self internalPush: (self

encodeFrameFieldHasContext: false

isBlock: false

numArgs: (self argumentCountOfMethodHeader: methodHeader)).

self internalPush: nilObj. “FxThisContext field”

self internalPush: rcvr.

        “Initialize temps…”
        argumentCount
+ 1 to: numTemps do:
                 [:
i | self internalPush: nilObj].

        “-1 to account for pre-increment in fetchNextBytecode”
        localIP
:= self pointerForOop: (self initialPCForHeader: methodHeader method: newMethod) 1.

        “Pass primitive error code to last temp if method receives it (indicated
         by an initial long store temp bytecode). Protect against obsolete values
         in primFailCode by checking that newMethod actually has a primitive?”

        primFailCode
~= 0 ifTrue:
                 [
((self methodHeaderHasPrimitive: methodHeader)

and: [(self byteAtPointer: localIP + 1) = 129 “long store temp”]) ifTrue:

[errorCode := self getErrorObjectFromPrimFailCode.

self longAt: localSP put: errorCode “nil if primFailCode == 1, or primFailCode”].
                 primFailCode
:= 0].

        self assert: (self frameNumArgs: localFP) == argumentCount.

self assert: (self frameIsBlockActivation: localFP) not.

self assert: (self frameHasContext: localFP) not.

        “Now check for stack overflow or an event (interrupt, must scavenge, etc)”
        localSP
< stackLimit ifTrue:
                 [
self externalizeIPandSP.

self stackOverflowOrEvent: argumentCount mayContextSwitch: true.

self internalizeIPandSP]

On overflow we must allocate a new stack page and continue execution there, linking the new bottom-most frame (its base frame) to the current frame. Likewise, return must deal with returning from a base frame and return from one stack frame to the next. We have a mechanism for referring to stack frames, married contexts, so to link a stack page’s base frame to the stack page beneath it we marry the top frame of the stack we’re leaving and store this in the base frame of the stack page we’re entering. We mark the new stack page’s base frame as such by giving it a null caller saved fp and use the caller saved ip field to hold the caller context, the spouse of the stack page beneath’s top frame:

We have a linked list of StackPage objects, one for each page, that we use to keep stack pages in order of usage, along with free pages, referenced by a variable called the mostRecentlyUsedPage. Each StackPage keeps track of whether a stack page is in use (baseFP is non-null) and what part of the page is in use (from the first slot through to the headSP) and what the frames are in the page (the list from headFP chained through caller saved fp to the baseFP). The interpreter’s current stack page is called stackPage. On stack switch we load stackLimit from stackPage’s stackLimit. Peter cleverly realised that one can use the stackLimit check to cause the VM to break out of execution to process input events. The VM is set up to respond to potential input with an interrupt handler that sets the stackLimit to all ones (the highest possible address) so that the next stack overflow check will fail. We also check for stack overflow on backward branch so that we can break out of infinite loops:

StackInterpreter methods for jump bytecodes
longUnconditionalJump

| offset |

offset := (((currentBytecode bitAnd: 7) 4) * 256) + self fetchByte.
        localIP
:= localIP + offset.
        (
offset < 0 “backward jump means we’re in a loop; check for possible interrupts”

and: [localSP < stackLimit]) ifTrue:
                 [
self externalizeIPandSP.

self checkForEventsMayContextSwitch: true.

self browserPluginReturnIfNeeded.

self internalizeIPandSP].

self fetchNextBytecode

So stackOverflowOrEvent:mayContextSwitch: checks whether stackLimit differs from stackPage’s stack limit to see whether it should check for input and only switches to a new page if the stack pointer is below stackPage’s real stack limit.

Of course on stack overflow we may find that there are no free stack pages, in which case the VM simply flushes all the frames
on the least-recently used page to the heap in the form of contexts. First it ensures all frames on the page are married and then divorces them all, linking them through their sender fields just as if they were created by a context-only VM, and then reuses the page, mercilessly killing the frames there-on. If any other stack page had the freed stack page beneath it then that stack page’s base frame will find its saved caller context is single.

So as execution proceeeds the stack zone holds the top frames of a number of recently executed processes, overflowing the contents of older stack pages to the heap as contexts. The only possible references into that page are from contexts which have all been divorced, so all references remain valid, except now they’re to single contexts instead of married ones.

When the system snapshots the image all stack frames are divorced and so the image file contains only single contexts, allowing the image file to be run by a context-only VM or started up on a VM with a different number of stack pages at different addresses. Here’s the divorce code:

StackInterpreter methods for image save/restore
snapshot: embedded

“update state of active context”

| activeContext activeProc dataSize rcvr setMacType stackIndex |
        <var:
#setMacType type: ‘void *’>

        “Need to convert all frames into contexts since the snapshot file only holds objects.”

self push: instructionPointer.

activeContext := self divorceAllFrames.

self pushRemappableOop: activeContext.

        “update state of active process”
        …etc…

StackInterpreter methods for frame access
divorceAllFrames

| activeContext |
        <inline:
false>
        <var:
#aPage type: #’StackPage *’>

self externalWriteBackHeadFramePointers.

activeContext := self ensureFrameIsMarried: framePointer.

0 to: numStackPages 1 do:
                 [:
i| | aPage |

aPage := stackPages stackPageAt: i.

(stackPages isFree: aPage) ifFalse:

[self divorceFramesIn: aPage]].
        stackPage
:= 0.

^activeContext

divorceFramesIn: aStackPage

| theFP calleeFP theSP theIP calleeContext theContext |
        <inline:
false>
        <var:
#aStackPage type: #’StackPage *’>
        <var:
#theFP type: #’char *’>
        <var:
#calleeFP type: #’char *’>
        <var:
#theSP type: #’char *’>

        statStackPageDivorce := statStackPageDivorce + 1.

        theFP := aStackPage headFP.

theSP := aStackPage headSP.

theIP := stackPages longAt: theSP.

theSP := theSP + BytesPerWord. “theSP points at hottest item on frame’s stack”

calleeContext := nil.

        [theContext := self ensureFrameIsMarried: theFP.

self updateStateOfSpouseContextForFrame: theFP WithSP: theSP.

self storePointerUnchecked: InstructionPointerIndex

ofObject: theContext

withValue: (self contextInstructionPointerForFrame: theFP IP: theIP).

self assert: (self frameReceiver: theFP)

== (self fetchPointer: ReceiverIndex ofObject: theContext).

calleeContext ~~ nil ifTrue:

[self storePointer: SenderIndex

ofObject: calleeContext

withValue: theContext].

calleeContext := theContext.

calleeFP := theFP.

theIP := self frameCallerContext: theFP. “a.k.a. frameCallerIP:”

theFP := self frameCallerFP: theFP.

theFP ~= 0] whileTrue:
                 [
“theSP points at stacked hottest item on frame’s stack”

theSP := self frameCallerSP: calleeFP].

        self storePointer: SenderIndex

ofObject: theContext

withValue: theIP. “The ip of the base frame is the caller context”

        “The page is now free; mark it so.”

aStackPage baseFP: 0

updateStateOfSpouseContextForFrame: theFP WithSP: theSP

“Update the frame’s spouse context with the frame’s current state except for the
         sender and instruction pointer, which are used to mark the context as married.”


| theContext tempIndex pointer |
        <inline:
false>
        <var:
#theFP type: #’char *’>
        <var:
#theSP type: #’char *’>
        <var:
#pointer type: #’char *’>

self assert: (self frameHasContext: theFP).

theContext := self frameContext: theFP.

tempIndex := self frameNumArgs: theFP.

pointer := theFP + FoxReceiver BytesPerWord.
        [
pointer >= theSP] whileTrue:
                 [
tempIndex := tempIndex + 1.

self storePointer: ReceiverIndex + tempIndex

ofObject: theContext

withValue: (stackPages longAt: pointer).

pointer := pointer BytesPerWord].

self storePointerUnchecked: StackPointerIndex

ofObject: theContext

withValue: (self integerObjectOf: tempIndex)



Widowhood

Given that contexts are objects they have indefinite extent; they can be stored in instance variables, typically indirectly from blocks that are stored in various places) and so outlive being returned from. For example here’s one way to create a widowed context for a block activation:

        | container |
        container := Array new: 1.
        #(foo) do: [:ignored| container at: 1 put: thisContext].
        container

Even simpler would be
Object methods for examples
widowedContext

^thisContext

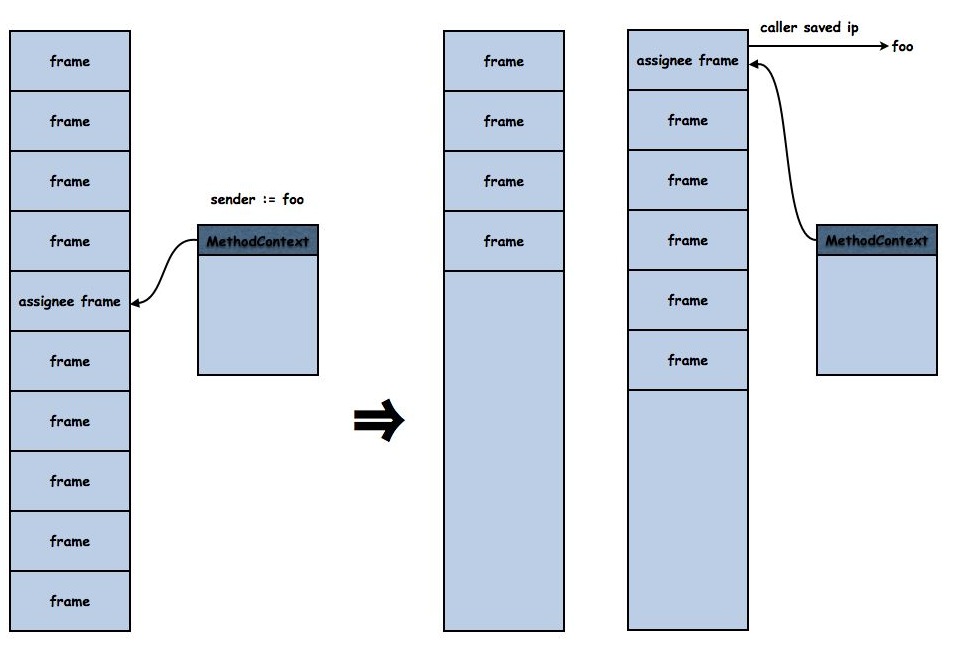

At various times, for example whenever accessing the instance variables of contexts, or on return, we need to check whether a context is single, married or widowed and act accordingly. A single context will have a sender that is not a SmallInteger (recall isMarriedOrWidowedContext: above). A married or widowed context however may or or may not have outlived its spouse. Since the system starts up and snapshots with only single contexts we know that all encoded frame pointers in sender fields point into stack pages. We can easily derive the StackPage object for a stack page because each stack page is a power-of-two in size and all stack pages are contiguous. Once we have the StackPage we can find out if it is in use or not, and if the context’s spouse frame is in the live portion of the stack (between baseFP and headFP). If so, we can follow the frame pointer and examine the frame’s flags and context fields. But there is no guarantee that we’re looking at the actual frame. It may have been exited and overwritten by some other frame. So we must assume that the spouse frame pointer is potentially pointing at an arbitrary position in the stack.

Note that we have to keep the current stackPage’s headFP and headSP up-to-date because the interpreter of course uses its own localFP and localSP (and, sigh, framePointer and stackPointer, the former being a clever performance hack that tediously causes lots of code duplication, one that the JIT can hopefully do without). writeBackHeadFramePointers and externalWriteBackHeadFramePointers assign stackPage headFP and headSP from localFP & localSP or framePointer and stackPointer respectively (see e.g. divorceAllFrames above).

Because the stack and the heap are disjoint there is no overlap of caller saved fp and other fields on the stack (saved instruction pointers are also pointers but into method bytecodes). So by storing the spouse’s caller saved fp in the married context, a match implies the spouse frame pointer is to a frame at that position. If the frame has a context context matches then we know the two are married. If they’re not, the frame must have exited, and so we widow the context by converting it into a context that has been returned from, .e. we nil its sender and instruction pointer fields. Now you can see the bug in marryFrame above. The widowed context will have a valid method, receiver and arguments (arguments being read-only in Smalltalk) but shouldn’t hold onto the temporaries that existed at the time of its creation because they could be out-of-date. Alas Qwaq is too close to a release right now for me to dare fixing this; I’m going to wait a week or two. That a widowed context doesn’t hold onyto non-argument temporaries is, I believe (and fervently hope) the only visible difference between a pure context VM and a stack VM. I think its fair to expect that volatile state does disappear on return, and not holding onto volatile state is good for garbage collection. This change in semantics has never been complained about by the VisualWorks community when I introduced this scheme to VisualWorks in 1999. The only code I’ve ever seen affected by this was an exception report generator that used to generate its report after the exception handler had squirreled away the context and returned. The fix is either to generate the report in the exception handler or copy the context chain there-in.

With widowhood explained we can have a look at the full glory of return.



Return



As we’ve seen, most of the time send and return are considerably less complicated than in the context VM. Send is somewhat more complicated when there’s a stack overflow. Return is somewhat more complicated when there is a base return:

StackInterpreter methods for return bytecodes
commonReturn

“Note: Assumed to be inlined into the dispatch loop.”

        | closure home unwindContextOrNilOrZero frameToReturnTo contextToReturnTo theFP callerFP newPage |
        <var:
#frameToReturnTo type: #’char *’>
        <var:
#theFP type: #’char *’>
        <var:
#callerFP type: #’char *’>
        <var:
#newPage type: #’StackPage *’>
        <var:
#thePage type: #’StackPage *’>
        <sharedCodeNamed:
‘commonReturn’ inCase: 120>

        “If this is a method simply return to the sender/caller.”
        (
self frameIsBlockActivation: localFP) ifFalse:
                 [
^self commonCallerReturn].

        … non-local return code; here be beasties …

commonCallerReturn

“Return to the previous context/frame (sender for method activations, caller for block activations).”

| callersFPOrNull |
        <var:
#callersFPOrNull type: #’char *’>
        <sharedCodeNamed:
‘commonCallerReturn’ inCase: 125> “returnTopFromBlock”

        callersFPOrNull := self frameCallerFP: localFP.

callersFPOrNull == 0 “baseFrame” ifTrue:
                 [
self assert: localFP = stackPage baseFP.

^self baseReturn].

        localIP := self frameCallerSavedIP: localFP.
        localSP
:= localFP + (self frameStackedReceiverOffset: localFP).
        localFP
:= callersFPOrNull.
        stackPages
longAt: localSP put: localReturnValue.

self fetchNextBytecode.
        method
:= self frameMethod: localFP

baseReturn

| contextToReturnTo isContext theFP theSP thePage |
        <var:
#theFP type: #’char *’>
        <var:
#theSP type: #’char *’>
        <var:
#thePage type: #’StackPage *’>

contextToReturnTo := self frameCallerContext: localFP.

isContext := self isContext: contextToReturnTo.
        (
isContext

and: [self isStillMarriedContext: contextToReturnTo])

ifTrue:
                          [
theFP := self frameOfMarriedContext: contextToReturnTo.

thePage := stackPages stackPageFor: theFP.

self assert: theFP == thePage headFP.

theSP := thePage headSP]

ifFalse:
                          [
(isContext

and: [self isIntegerObject: (self fetchPointer: InstructionPointerIndex ofObject: contextToReturnTo)]) ifFalse:

[^self internalCannotReturn: localReturnValue].

thePage := self makeBaseFrameFor: contextToReturnTo.

theFP := thePage headFP.

theSP := thePage headSP].
        stackPages
freeStackPageNoAssert: stackPage. “for a short time invariant is violated; assert follows”

self setStackPageAndLimit: thePage.

self assert: (stackPages stackPageFor: theFP) == stackPage.
        localSP
:= theSP.
        localFP
:= theFP.
        method
:= self frameMethod: localFP.
        localIP
:= self pointerForOop: self internalStackTop.

self internalStackTopPut: localReturnValue.

self fetchNextBytecode.

self assert: (self checkIsStillMarriedContext: contextToReturnTo currentFP: localFP)

But non-local return is much more complicated. What does non-local return do in a pure context VM? It walks the context chain from a block context until it finds the block context’s home context, checking for unwnd protect contexts along the way. If it doesn’t find the home context it sends cannotReturn: and if it finds an unwnd protect it sends aboutToReturn:through: and allows the image to run unwind-protect blocks itself, otherwise it simply returns from the home context. Using the stack, things are seriously more complicated.

In the StackInterpreter non-local return occurs in some block activation (a frame) and returns from the block activation’s home context, which is some distance along the block activation’s closure’s outerContext chain (its lexical chain). The home context could be single, widowed or married. If married it could be a base frame whose caller could be single, widowed or married. If single we need to marry it to have a frame to resume execution in. If the home’s caller is married its spouse frame could be the head frame on its page or some interior frame. So we could be returning within a stack page or across stack pages or across stack pages and single contexts. First we have to walk this chain looking for unwind protects and the home context, then we have to do the return, freeing intervening stack pages. Complicated.

So here it is. Read the comments and hopefully it’ll make sense.

StackInterpreter methods for return bytecodes
commonReturn

“Note: Assumed to be inlined into the dispatch loop.”

        | closure home unwindContextOrNilOrZero frameToReturnTo contextToReturnTo theFP callerFP newPage |
        <var:
#frameToReturnTo type: #’char *’>
        <var:
#theFP type: #’char *’>
        <var:
#callerFP type: #’char *’>
        <var:
#newPage type: #’StackPage *’>
        <var:
#thePage type: #’StackPage *’>
        <sharedCodeNamed:
‘commonReturn’ inCase: 120>

        “If this is a method simply return to the sender/caller.”
        (
self frameIsBlockActivation: localFP) ifFalse:
                 [
^self commonCallerReturn].

        “Since this is a block activation the closure is on the stack above any args and the frame.”

closure := self pushedReceiverOrClosureOfFrame: localFP.

        home := nil.

“Walk the closure’s lexical chain to find the context or frame to return from (home).”
        [
closure ~~ nilObj] whileTrue:
                 [
home := self fetchPointer: ClosureOuterContextIndex ofObject: closure.

closure := self fetchPointer: ClosureIndex ofObject: home].

“home is to be returned from provided there is no unwind-protect activation between
         this frame and home’s sender. Search for an unwind. findUnwindThroughContext:
         will answer either the context for an unwind-protect activation or nilObj if the sender
         cannot be found or 0 if no unwind is found but the sender is. We must update the
         current page’s headFrame pointers to enable the search to identify widowed contexts
         correctly.”


self writeBackHeadFramePointers.

unwindContextOrNilOrZero := self findUnwindThroughContext: home.

unwindContextOrNilOrZero == nilObj ifTrue:
                 [
“error: can’t find home on chain; cannot return”

^self internalCannotReturn: localReturnValue].

unwindContextOrNilOrZero ~~ 0 ifTrue:
                 [
^self internalAboutToReturn: localReturnValue through: unwindContextOrNilOrZero].

        “Now we know home is on the sender chain.
         We could be returning to either a context or a frame. Find out which.”


contextToReturnTo := nil.
        (
self isMarriedOrWidowedContext: home)

ifTrue:
                          [
self assert: (self checkIsStillMarriedContext: home currentFP: localFP).

theFP := self frameOfMarriedContext: home.

(self isBaseFrame: theFP)

ifTrue:

[contextToReturnTo := self frameCallerContext: theFP]

ifFalse:

[frameToReturnTo := self frameCallerFP: theFP]]

ifFalse:
                          [
contextToReturnTo := self fetchPointer: SenderIndex ofObject: home.

(self isMarriedOrWidowedContext: contextToReturnTo) ifTrue:

[self assert: (self checkIsStillMarriedContext: contextToReturnTo currentFP: localFP).

frameToReturnTo := self frameOfMarriedContext: contextToReturnTo.

contextToReturnTo := nil]].

“If returning to a context we must make a frame for it unless it is dead.”

contextToReturnTo ~= nil ifTrue:
                 [
frameToReturnTo := self establishFrameForContextToReturnTo: contextToReturnTo.

frameToReturnTo == 0 ifTrue:

[“error: home’s sender is dead; cannot return”

^self internalCannotReturn: localReturnValue]].

        “Now we have a frame to return to. If it is on a different page we must
         free intervening pages and nil out intervening contexts. We must free
         intervening stack pages because if we leave the pages to be divorced
         then their contexts will be divorced with intact senders and instruction
         pointers. This code is similar to primitiveTerminateTo.”


newPage := stackPages stackPageFor: frameToReturnTo.

newPage ~~ stackPage ifTrue:
                 [
| currentCtx thePage nextCntx |

currentCtx := self frameCallerContext: stackPage baseFP.

self assert: (self isContext: currentCtx).
                  stackPages
freeStackPage: stackPage.

[(self isMarriedOrWidowedContext: currentCtx)

and: [(stackPages stackPageFor: (theFP := self frameOfMarriedContext: currentCtx)) == newPage]] whileFalse:

[(self isMarriedOrWidowedContext: currentCtx)

ifTrue:

[thePage := stackPages stackPageFor: theFP.

currentCtx := self frameCallerContext: thePage baseFP.

self freeStackPage: thePage]

ifFalse:

[self assert: (self isContext: currentCtx).

nextCntx := self fetchPointer: SenderIndex ofObject: currentCtx.

self storePointerUnchecked: SenderIndex ofObject: currentCtx withValue: nilObj.

self storePointerUnchecked: InstructionPointerIndex ofObject: currentCtx withValue: nilObj.

currentCtx := nextCntx]].

self setStackPageAndLimit: newPage.
                  localSP
:= stackPage headSP.
                  localFP
:= stackPage headFP].

        “Two cases. Returning to the top frame or an interior frame.
         The top frame has its instruction pointer on top of stack.
         An interior frame has its instruction pointer in the caller frame.
         We need to peel back any frames on the page until we get to the correct frame.”

        localFP == frameToReturnTo

ifTrue: “pop the saved IP, push the return value and continue.”
                          [localIP
:= self pointerForOop: self internalStackTop]

ifFalse:
                          [
[callerFP := localFP.
                           localFP
:= self frameCallerFP: localFP.
                           localFP
~~ frameToReturnTo] whileTrue.
                          localIP
:= self frameCallerSavedIP: callerFP.
                          localSP
:= (self frameCallerSP: callerFP) BytesPerWord].

self internalStackTopPut: localReturnValue.
        method
:= self frameMethod: localFP.

self fetchNextBytecode

findUnwindThroughContext: homeContext

“Search for either an unwind-protect (activation of method with primitive 198)
         or homeContext along the sender chain, which ever is found first. If homeContext
         is not found answer nilObj, indicating cannotReturn:. If homeContext is found
         answer 0. If homeContext is itself an unwind-protect answer the context, not 0.”


| ctxtOrNilOrZero theMethod |

self externalizeIPandSP.

“Since nothing changes we don’t need to internalize.”

ctxtOrNilOrZero := self findMethodWithPrimitive: 198 FromFP: localFP UpToContext: homeContext.

ctxtOrNilOrZero = 0 ifTrue:
                 [
theMethod := self fetchPointer: MethodIndex ofObject: homeContext.

(self primitiveIndexOf: theMethod) == 198 ifTrue:

[^homeContext]].

^ctxtOrNilOrZero

findMethodWithPrimitive: primitive FromFP: startFP UpToContext: homeContext

“See findUnwindThroughContext:. Alas this is mutually recursive with
         findMethodWithPrimitive:FromContext:ThroughContext: instead of iterative.
         We’re doing the simplest thing that could possibly work. Niceties can wait.”


| theFP theFPAbove theMethod senderContext |
        <var:
#startFP type: #’char *’>
        <var:
#theFP type: #’char *’>
        <var:
#theFPAbove type: #’char *’>

theFP := startFP.

theFPAbove := startFP.
        [
((self frameHasContext: theFP)

and: [homeContext == (self frameContext: theFP)]) ifTrue:

[^0].

theMethod := self frameMethod: theFP.

(self primitiveIndexOf: theMethod) == primitive ifTrue:

[^self ensureFrameIsMarried: theFP].

theFPAbove := theFP.

theFP := self frameCallerFP: theFP.

theFP ~= 0] whileTrue.

senderContext := self frameCallerContext: theFPAbove.
        (
self isContext: senderContext) ifFalse:
                 [
^nilObj].

^self

findMethodWithPrimitive: primitive

FromContext: senderContext

UpToContext: homeContext

findMethodWithPrimitive: primitive FromContext: senderContext UpToContext: homeContext

“See findUnwindThroughContext:. Alas this is mutually recursive with
         findMethodWithPrimitive:FromFP:SP:ThroughContext: instead of iterative.
         We’re doing the simplest thing that could possibly work. Niceties can wait.”


| theContext theMethod |

theContext := senderContext.
        [
self isMarriedOrWidowedContext: theContext] whileFalse:
                 [
theContext = homeContext ifTrue: [^0].

theMethod := self fetchPointer: MethodIndex ofObject: theContext.

(self primitiveIndexOf: theMethod) == primitive ifTrue:

[^theContext].

theContext := self fetchPointer: SenderIndex ofObject: theContext.

theContext = nilObj ifTrue:

[^theContext]].
        (
self isWidowedContext: theContext) ifTrue:
                 [
^nilObj].

^self

findMethodWithPrimitive: primitive

FromFP: (self frameOfMarriedContext: theContext)

UpToContext: homeContext

Ouch. That is complicated, but at least it is the most complicated thing in the StackInterpreter. It is not finished yet. The mutual recursion between findMethodWithPrimitive:FromFP:UpToContext: and findMethodWithPrimitive:FromContext:UpToContext: could conceivably cause the runtime C stack to overflow and should be flattened into a set of loops. But when I wrote this I found it much easier to understand because I was riting it in Smalltalk. I’m not at all convinced that the code inside the VisualWorks VMs correct because, being written in C, it is not nearly as comprehensible.

Those of you who know the Squeak VM well will know there’s a primitive terminateTo: that does something similar to the context nilling in non-local return. It is a little simpler than non-local return (although not much) but it is just a variation on the same theme so I’ll spare you.



Hiding Stack Frames

Still reading? Good. Now we’re ready for some fun. While we’ve organized the system around stack pages and improved performance markedly (measurements to follow) and prepared the ground for the JIT, we still have to hide these stack pages from the Smalltalk programmer. We need to arrange that whever he or she accesses a context it hides its spose and always pretends to be single, whether we read or write it. We’ve seen how return copes with this, but what about methods on context such as

ContextPart methods for debugger access
swapSender: coroutine

“Replace the receiver’s sender with coroutine and answer the receiver’s
        previous sender. For use in coroutining.”

        | oldSender |

oldSender := sender.
        sender
:= coroutine.

^oldSender

The problem here is that the current valid state of the context lives in the frame and changing that state needs to either affect the frame or update the context after it has been divorced. One apparently straight-forward way to handle this is to divorce contexts whenever they are sent messages and whenever the system attempts to access a context instance variable. This is the way the VisualWorks VM handled things until I changed the scheme in 5i in 1999. Married contexts (hybrid contexts in the VisualWorks terminology) had special classes that would cause teh send machinery to trap and “stabilize” (divorce) the receiver context. The bytecode compiler marked methods that accessed instance variables which could be run by contexts and the JIT generated special code that would stabilize the receiver context before accessing an instance variable.

The main problem with this approach is that any kind of state access ends up divorcing a context which hurts performance and encourages a proliferation of complex primitives in the VM which try and avoid divorce replicating code that could be written in the image. The other problem is that it is slow. Sends to contexts trap and divorce even for read access. Wen I introduced the scheme I’m using here exception handling code and non-local return roughly doubled in speed. The key in this scheme is to intercept all access to context instace variables and forward the access to the spouse if married.

In the VM the only places the state of a context are accessed outside of the frame management code for send and return and stack page management are the instance variable access bytecodes and the at: at:put: instVarAt: and instVarAt:put: primitives. Instance variable access is very frequent so having to test for accessing a context on every instance variable access bytecode would hurt performance noticeably. Unlike a JIT we can’t perform the text for contextness at compile time based on the class of the method being compiled; we have to test on execution of the relevant bytecocde. But as I alluded to in Closures Part III I added a horrible hack to the bytecode compiler to avoid testing on most instace variable accesses.

The compiler allows a class to specify special node classes for handling instance variables. This is used by Tweak to access properties and by InstructionStream, the first superclass of ContextPart to introduce state, to handle context instance variables.

Encoder methods for initialize-release
init: aClass context: aContext notifying: req
        requestor
:= req.
        class
:= aClass.
        nTemps
:= 0.
        supered
:= false.

self initScopeAndLiteralTables.
        class
variablesAndOffsetsDo:
                 [:
variable “<String|CFieldDefinition>” :offset “<Integer|nil>” |

offset isNil

ifTrue: [scopeTable at: variable name put: (FieldNode new fieldDefinition: variable)]

ifFalse: [scopeTable

at: variable

put: (offset >= 0

ifTrue: [InstanceVariableNode new

name: variable index: offset]

ifFalse: [MaybeContextInstanceVariableNode new

name: variable index: offset negated])]].

aContext ~~ nil ifTrue:
                 [
| homeNode |

homeNode := self bindTemp: self doItInContextName.

“0th temp = aContext passed as arg”

aContext tempNames withIndexDo:

[:variable :index|
                          scopeTable

at: variable

put: (MessageAsTempNode new

receiver: homeNode

selector: #namedTempAt:

arguments: (Array with: (self encodeLiteral: index))

precedence: 3

from: self)]].
        sourceRanges
:= Dictionary new: 32.
        globalSourceRanges
:= OrderedCollection new: 32

CProtoObject class methods for compiling
variablesAndOffsetsDo: aBinaryBlock

“This is the interface between the compiler and a class’s instance or field names. The
         class should enumerate aBinaryBlock with the field definitions (with nil offsets) followed
         by the instance variable name strings and their integer offsets (1-relative). The order is
         important; names evaluated later will override the same names occurring earlier.”

        self allFieldsReverseDo: [:field| aBinaryBlock value: field value: nil].

self instVarNamesAndOffsetsDo: aBinaryBlock

Behavior methods for compiling
variablesAndOffsetsDo: aBinaryBlock

“This is the interface between the compiler and a class’s instance or field names. The
         class should enumerate aBinaryBlock with the field definitions (with nil offsets) followed
         by the instance variable name strings and their integer offsets (1-relative). The order is
         important; names evaluated later will override the same names occurring earlier.”

        “Only need to do instance variables here. CProtoObject introduces field definitions.”

self instVarNamesAndOffsetsDo: aBinaryBlock

instVarNamesAndOffsetsDo: aBinaryBlock

“This is part of the interface between the compiler and a class’s instance or field names.
         The class should enumerate aBinaryBlock with the instance variable name strings and
         their integer offsets. The order is important. Names evaluated later will override the
         same names occurring earlier.”

        “Nothing to do here; ClassDescription introduces named instance variables”

^self

ClassDescription methods for compiling
instVarNamesAndOffsetsDo: aBinaryBlock

“This is part of the interface between the compiler and a class’s instance or field names.
         The class should enumerate aBinaryBlock with the instance variable name strings and
         their integer offsets. The order is important. Names evaluated later will override the
         same names occurring earlier.”

        | superInstSize |
        (
superInstSize := superclass notNil ifTrue: [superclass instSize] ifFalse: [0]) > 0 ifTrue:
                 [superclass
instVarNamesAndOffsetsDo: aBinaryBlock].

1 to: self instSize superInstSize do:
                 [:
i| aBinaryBlock value: (instanceVariables at: i) value: i + superInstSize]

InstructionStream class methods for compiling
instVarNamesAndOffsetsDo: aBinaryBlock

“This is part of the interface between the compiler and a class’s instance or field names.
         We override here to arrange that the compiler will use MaybeContextInstanceVariableNodes
         for instances variables of ContextPart or any of its superclasses and subclasses. The
         convention to make the compiler use the special nodes is to use negative indices”

        | superInstSize |
        (
self withAllSubclasses noneSatisfy: [:class|class isContextClass]) ifTrue:
                 [
^super instVarNamesAndOffsetsDo: aBinaryBlock].
        (
superInstSize := superclass notNil ifTrue: [superclass instSize] ifFalse: [0]) > 0 ifTrue:
                 [superclass
instVarNamesAndOffsetsDo: aBinaryBlock].

1 to: self instSize superInstSize do:
                 [:
i| aBinaryBlock value: (instanceVariables at: i) value: (i + superInstSize) negated]

MaybeContextInstanceVariableNode simply forces the use of the long-form instance variable bytecodes:

MaybeContextInstanceVariableNode methods for code generation (new scheme)
emitCodeForValue: stack encoder: encoder

stack push: 1.

^encoder genPushInstVarLong: index

emitCodeForStorePop: stack encoder: encoder

encoder genStorePopInstVarLong: index.

stack pop: 1

EncoderForV3 methods for bytecode generation
genPushInstVarLong: instVarIndex

“See BlueBook page 596”

“See also MaybeContextInstanceVariableNode”
        (
instVarIndex >= 0 and: [instVarIndex < 256]) ifTrue:
                 [
“132         10000100 iiijjjjj kkkkkkkk         (Send, Send Super, Push Receiver Variable, Push Literal Constant, Push Literal Variable, Store Receiver Variable, Store-Pop Receiver Variable, Store Literal Variable)[iii] #kkkkkkkk jjjjj”
                  stream

nextPut: 132;

nextPut: 64;

nextPut: instVarIndex.

^self].

^self outOfRangeError: ‘index’ index: instVarIndex range: 0 to: 255

genStorePopInstVarLong: instVarIndex

“See BlueBook page 596”

“See also MaybeContextInstanceVariableNode”
        (
instVarIndex >= 0 and: [instVarIndex < 256]) ifTrue:
                 [
“132         10000100 iiijjjjj kkkkkkkk         (Send, Send Super, Push Receiver Variable, Push Literal Constant, Push Literal Variable, Store Receiver Variable, Store-Pop Receiver Variable, Store Literal Variable)[iii] #kkkkkkkk jjjjj”
                  stream

nextPut: 132;

nextPut: 192;

nextPut: instVarIndex.

^self].

^self outOfRangeError: ‘index’ index: instVarIndex range: 0 to: 255

The doubleExtendedDoAnythingBytecode (I’m not making this up) only needs to be used for instance variables with an offset greater than 63, which is rare. Since MethodContext only has 6 instance variables we only have to check for the receiver being a contex if we’re using the doubleExtendedDoAnythingBytecode to access instance variables 0 through 5. Since the doubleExtendedDoAnythingBytecode has to do a lot of decoding before it computes the instance variable offset and the test is ony a compare of the computed index against the constant 6 the test is essentally free for all but use on actual contexts.

StackInterpreter methods for send bytecodes
doubleExtendedDoAnythingBytecode

“Replaces the Blue Book double-extended send [132], in which the first byte was wasted on 8 bits of argument count.
        Here we use 3 bits for the operation sub-type (opType), and the remaining 5 bits for argument count where needed.
        The last byte give access to 256 instVars or literals.
        See also secondExtendedSendBytecode”


| byte2 byte3 opType top |

byte2 := self fetchByte.

byte3 := self fetchByte.

opType := byte2 >> 5.

opType = 0 ifTrue:
                 [messageSelector
:= self literal: byte3.
                  argumentCount
:= byte2 bitAnd: 31.

^self normalSend].

opType = 1 ifTrue:
                 [messageSelector
:= self literal: byte3.
                  argumentCount
:= byte2 bitAnd: 31.

^self superclassSend].

self fetchNextBytecode.

opType = 2 ifTrue: [^self pushMaybeContextReceiverVariable: byte3].

opType = 3 ifTrue: [^self pushLiteralConstant: byte3].

opType = 4 ifTrue: [^self pushLiteralVariable: byte3].

top := self internalStackTop.

opType = 5 ifTrue:
                 [
^self storeMaybeContextReceiverVariable: byte3 withValue: top].

opType = 6 ifTrue:
                 [
self internalPop: 1.

^self storeMaybeContextReceiverVariable: byte3 withValue: top].

opType = 7 ifTrue:
                 [
^self storePointer: ValueIndex ofObject: (self literal: byte3) withValue: top]

StackInterpreter methods for stack bytecodes
pushMaybeContextReceiverVariable: fieldIndex

“Must trap accesses to married and widowed contexts.
         But don’t want to check on all inst var accesses. This
         method is only used by the long-form bytecodes, evading
         the cost. Note that the method, closure and receiver fields
         of married contexts are correctly initialized so they don’t
         need special treatment on read. Only sender, instruction
         pointer and stack pointer need to be intercepted on reads.”


| rcvr |
        <inline:
true>

rcvr := self receiver.
        (
fieldIndex < MethodIndex

and: [self isMarriedOrWidowedContext: rcvr])

ifTrue:
                          [
self internalPush: (self instVar: fieldIndex ofContext: rcvr)]

ifFalse:
                          [
self internalPush: (self fetchPointer: fieldIndex ofObject: rcvr)]

storeMaybeContextReceiverVariable: fieldIndex withValue: anObject

“Must trap accesses to married and widowed contexts.
         But don’t want to check on all inst var accesses. This
         method is only used by the long-form bytecodes, evading the cost.”


| rcvr |

rcvr := self receiver.
        (
fieldIndex <= ReceiverIndex

and: [self isMarriedOrWidowedContext: rcvr])

ifTrue:
                          [
self instVar: fieldIndex ofContext: rcvr put: anObject]

ifFalse:
                          [
self storePointer: fieldIndex ofObject: rcvr withValue: anObject]

Reading is easy. Simply compute the relevant value, sender, pc or stackp from the spouse frame.

StackInterpreter methods for frame access
instVar: offset ofContext: aOnceMarriedContext

“Fetch an instance avriable from a maybe married context.
         If the context is still married compute the value of the
         relevant inst var from the spouse frame’s state.”


| spouseFP senderFP |
        <inline:
true>
        <var:
#spouseFP type: #’char *’>
        <var:
#senderFP type: #’char *’>
        <var:
#thePage type: #’StackPage *’>
        <var:
#theFPAbove type: #’char *’>

self assert: offset < MethodIndex.

self assert: (self isMarriedOrWidowedContext: aOnceMarriedContext).

self writeBackHeadFramePointers.
        (
self isWidowedContext: aOnceMarriedContext) ifTrue:
                 [
^self fetchPointer: offset ofObject: aOnceMarriedContext].

        spouseFP := self withoutSmallIntegerTags: (self fetchPointer: SenderIndex ofObject: aOnceMarriedContext).

offset = SenderIndex ifTrue:
                 [
(self isBaseFrame: spouseFP) ifTrue:

[^self frameCallerContext: spouseFP].

senderFP := self frameCallerFP: spouseFP.

^self ensureFrameIsMarried: senderFP].

offset = StackPointerIndex ifTrue:
                 [
^self integerObjectOf: (self stackPointerIndexForFrame: spouseFP)].

offset = InstructionPointerIndex ifTrue:
                 [
| theIP thePage theFPAbove |

spouseFP == localFP

ifTrue: [theIP := self oopForPointer: localIP]

ifFalse:

[thePage := stackPages stackPageFor: spouseFP.

theFPAbove := self findFrameAbove: spouseFP inPage: thePage.

theIP := theFPAbove == 0

ifTrue: [stackPages longAt: thePage headSP]

ifFalse:[self oopForPointer: (self frameCallerSavedIP: theFPAbove)]].

^self contextInstructionPointerForFrame: spouseFP IP: theIP].

self error: ‘bad index’

Writing is a different matter. The one case that’s really important for performance is assigning the sender because it is used in e.g. co-routining but also in stack unwinding and termination. It is trivial to assign the sender of a base frame as it already refers to a context, but to assign to the sender of any other frame requires ingenuity something that Peter Deutsch and Allan Schiffman have in abundance and their solution is to split the stack into two.



The assignee and all frames above it are moved to another stack, making the assignee the base frame, rendering assigning the sender trivial. Likewise handlng other assignment cases is done by moving all frames above the assignee to another stack, divorcing the assignee frame and assigning to the resulting single context. Once the assignee frame is a base frame we no longer have to split its stack if its sender is assigned again. So contexts that have their sender assigned often migrate to the bottom of stack pages, allowing the StackInterpreter to keep up with a context interpreter when co-routining.

StackInterpreter methods for frame access
instVar: index ofContext: aMarriedContext put: anOop

| theFP |

“Assign the field of a married context. The important case to optimize is
         assigning the sender. We could also consider optimizing assiging the IP but
         typically that is followed by an assignment to the stack pointer and we can’t
         efficiently assign the stack pointer because it involves moving frames around.”

        <inline:
true>

self assert: (self isMarriedOrWidowedContext: aMarriedContext).

theFP := self frameOfMarriedContext: aMarriedContext.

index == SenderIndex ifTrue:
                 [
| thePage onCurrentPage |

thePage := stackPages stackPageFor: theFP.

self assert: stackPage == stackPages mostRecentlyUsedPage.

(onCurrentPage := thePage == stackPage) ifTrue:

[self writeBackHeadFramePointers].

self storeSenderOfFrame: theFP withValue: anOop.

onCurrentPage ifTrue:

[localFP := stackPage headFP.
                           localSP
:= stackPage headSP].

^self].

self externalizeIPandSP.

self externalDivorceFrame: theFP andContext: aMarriedContext.

self storePointer: index ofObject: aMarriedContext withValue: anOop.

self internalizeIPandSP

storeSenderOfFrame: theFP withValue: anOop

“Set the sender of a frame. If the frame is a base frame then this is trivial;
         merely store into the FoxCallerSavedIP field. If not, then split the stack at
         the frame, moving the frame and those hotter than it to a new stack page.
         In the new stack page the frame will be the base frame and storing trivial.
         Answer the possibly changed location of theFP.”


| thePage onCurrentPage newPage theMovedFP |
        <var:
#theFP type: #’char *’>
        <var:
#thePage type: #’StackPage *’>
        <var:
#newPage type: #’StackPage *’>
        <var:
#theMovedFP type: #’char *’>
        <returnTypeC:
‘char *’>
        (
self isBaseFrame: theFP) ifTrue:
                 [stackPages
longAt: theFP + FoxCallerSavedIP put: anOop.

^theFP].

self ensureFrameIsMarried: (self frameCallerFP: theFP).

thePage := stackPages stackPageFor: theFP.

self assert: stackPage == stackPages mostRecentlyUsedPage.

onCurrentPage := thePage == stackPage.

onCurrentPage ifFalse:
                 [
“Make sure the frame’s page isn’t divorced when a new page is allocated.”
                  stackPages
markStackPageNextMostRecentlyUsed: thePage].

newPage := self newStackPage.

theMovedFP := self moveFramesIn: thePage through: theFP toPage: newPage.

onCurrentPage ifTrue:
                 [
self setStackPageAndLimit: newPage].

self assert: (self isBaseFrame: theMovedFP).
        stackPages
longAt: theMovedFP + FoxCallerSavedIP put: anOop.

^theMovedFP

moveFramesIn: oldPage through: theFP toPage: newPage

“Move frames from the hot end of oldPage through to theFP to newPage.
         This has the effect of making theFP a base frame which can be stored into.
         Answer theFP’s new location.”


| newSP newFP stackedReceiverOffset delta callerFP callerIP fpInNewPage offsetCallerFP theContext |
        <inline:
false>
        <var:
#oldPage type: #’StackPage *’>
        <var:
#theFP type: #’char *’>
        <var:
#newPage type: #’StackPage *’>
        <var:
#newSP type: #’char *’>
        <var:
#newFP type: #’char *’>
        <var:
#callerFP type: #’char *’>
        <var:
#fpInNewPage type: #’char *’>
        <var:
#offsetCallerFP type: #’char *’>
        <var:
#source type: #’char *’>
        <returnTypeC:
‘char *’>

newSP := newPage baseAddress + BytesPerWord.

stackedReceiverOffset := self frameStackedReceiverOffset: theFP.

“First move the data. We will fix up frame pointers later.”

theFP + stackedReceiverOffset

to: oldPage headSP

by: BytesPerWord negated

do: [:source|

newSP := newSP BytesPerWord.
                          stackPages
longAt: newSP put: (stackPages longAt: source)].

“newSP = oldSP + delta => delta = newSP – oldSP”

delta := newSP oldPage headSP.

newFP := newPage baseAddress stackedReceiverOffset.

self setHeadFP: oldPage headFP + delta andSP: newSP inPage: newPage.

newPage baseFP: newFP.

callerFP := self frameCallerFP: theFP.

self assert: (self isBaseFrame: theFP) not.

self assert: (self frameHasContext: callerFP).

callerIP := self oopForPointer: (self frameCallerSavedIP: theFP).
        stackPages
longAt: theFP + stackedReceiverOffset put: callerIP.

oldPage

headFP: callerFP;

headSP: theFP + stackedReceiverOffset.

“Mark the new base frame in the new page”
        stackPages
longAt: newFP + FoxCallerSavedIP put: (self frameContext: callerFP).
        stackPages
longAt: newFP + FoxSavedFP put: 0.

“Now relocate frame pointers, updating married contexts to refer to their moved spouse frames.”

fpInNewPage := newPage headFP.
        [
offsetCallerFP := self frameCallerFP: fpInNewPage.

offsetCallerFP ~= 0 ifTrue:

[offsetCallerFP := offsetCallerFP + delta].
         stackPages
longAt: fpInNewPage + FoxSavedFP put: (self oopForPointer: offsetCallerFP).

(self frameHasContext: fpInNewPage) ifTrue:

[theContext := self frameContext: fpInNewPage.

self storePointerUnchecked: SenderIndex

ofObject: theContext

withValue: (self withSmallIntegerTags: fpInNewPage).

self storePointerUnchecked: InstructionPointerIndex

ofObject: theContext

withValue: (self withSmallIntegerTags: offsetCallerFP)].

fpInNewPage := offsetCallerFP.

fpInNewPage ~= 0] whileTrue.

^newFP

It turns out that moveFramesIn:through:toPage: is useful for one more function that really helps performance, stack overflow. Consider what happens in the execution of benchFib:

Integer methods for benchmarks
benchFib

^ self < 2

ifTrue: [1]

ifFalse: [(self1) benchFib + (self2) benchFib + 1]

If the initial argument is larger than the number of activations of nfib that can fit on the remaining room in the stack page a stack overflow will occur, and probably soon thereafter a base return back to the original stack. At some point the system will thrash doing overflowing sends and underflowing returns. When we first started using the StackInterpreter inside Qwaq benchFib for large N would do well but benchFib for small N would do badly and the problem was overflow/underflow thrashing.

The simple fix is to increase the number of frames moved on each successive overflow from the same page. On the first overflow we move one frame, on the second two and so on. Soon the thrashing is taken care of because the active frames end up located on the same page. So here’s stack overflow. It turns out we only need two variables to remember which page last overflowed and a count of frames to move.

StackInterpreter methods for frame access
stackOverflowOrEvent: numArgs mayContextSwitch: mayContextSwitch

“The stackPointer is below the stackLimit. This is either because of a
         stack overflow or the setting of stackLimit to indicate a possible interrupt.
         Check for interrupts and stackOverflow and deal with each appropriately.”


| newPage theFP callerFP overflowLimitAddress overflowCount |
        <var:
#newPage type: #’StackPage *’>
        <var:
#theFP type: #’char *’>
        <var:
#callerFP type: #’char *’>
        <var:
#overflowLimitAddress type: #’char *’>

        “If the stackLimit differs from the realStackLimit then the stackLimit
         has been set to indicate an event or interrupt that needs servicing.”

        stackLimit
== stackPage realStackLimit

ifTrue: [self externalWriteBackHeadFramePointers]

ifFalse: [self checkForEventsMayContextSwitch: mayContextSwitch].

        “After checkForInterrupts another event check may have been forced, setting both
         stackLimit and stackPage stackLimit to all ones. So here we must check against
         the real stackLimit, not the effective stackLimit.”

        stackPointer
< stackPage realStackLimit ifFalse:
                 [
^nil].

        statStackOverflow := statStackOverflow + 1.

        “The stack has overflowed this page. If the system is executing some recursive algorithm,
         e.g. fibonacci, then the system could thrash overflowing the stack if the call soon returns
         back to the current page. To avoid thrashing, since overflow is quite slow, we can move
         more than one frame. The idea is to record which page has overflowed, and the first
         time it overflows move one frame, the second time two frames, and so on. We move no
         more frames than would leave the page half occupied.”


theFP := framePointer.
        stackPage
== overflowedPage

ifTrue:
                          [
overflowLimitAddress := stackPage baseAddress stackPages overflowLimit.

overflowCount := extraFramesToMoveOnOverflow := extraFramesToMoveOnOverflow + 1.

[(overflowCount := overflowCount 1) >= 0

and: [(callerFP := self frameCallerFP: theFP) < overflowLimitAddress

and: [(self isBaseFrame: callerFP) not]]] whileTrue:

[theFP := callerFP]]

ifFalse:
                          [overflowedPage
:= stackPage.
                           extraFramesToMoveOnOverflow
:= 0].

        self ensureFrameIsMarried: (self frameCallerFP: theFP).

newPage := self newStackPage.

self moveFramesIn: stackPage through: theFP toPage: newPage.

self setStackPageAndLimit: newPage.
        framePointer
:= stackPage headFP.
        stackPointer
:= stackPage headSP.

“To overflow the stack this must be a new frame”

self assert: (self frameHasContext: framePointer) not.

self assert: (self validInstructionPointer: instructionPointer inMethod: method)



Garbage Collection

Before we can have a look at measurements I need to discuss garbage collection. There’s not much difficulty grabae collecitng references frm stack pages. The garbage collector simply has to traverse the frames on in-use pages. There is a need to void stack pages that are not reachable to stop them holding onto garbage, but this also is easy. The major problem is the Squeak VM’s habit of running the garbage collector inside an allocation when memory runs out. This is a feature it shares with a number of other garbage collectors in VMs and it is difficult to be emphatic enough when saying how horrible this is. It is incredibly difficult to live with and a huge source of bugs. Because the garbage collector can run, and hence move objects, on any allocation the VM must hold onto all unreferenced intermediate results it is using while allocating. For example, look at the start of the basic allocation routine in the standard Squeak VM:

ObjectMemory methods for allocation
allocate: byteSize headerSize: hdrSize h1: baseHeader h2: classOop h3: extendedSize doFill: doFill with: fillWord

“Allocate a new object of the given size and number of header words. (Note: byteSize already includes space for the base header word.) Initialize the header fields of the new object and fill the remainder of the object with the given value.
        May cause a GC”

        | newObj remappedClassOop end i |
        <inline:
true>
        <var:
#i type: ‘usqInt’>
        <var:
#end type: ‘usqInt’>

“remap classOop in case GC happens during allocation”

hdrSize > 1 ifTrue: [self pushRemappableOop: classOop].

newObj := self allocateChunk: byteSize + (hdrSize 1 * BytesPerWord).

hdrSize > 1 ifTrue: [remappedClassOop := self popRemappableOop].
        … etc …

Because allocateChunk might cause the GC to run the classOop might move and hence the “solution” (read “slow inconvenient hack”) is to provide a stack to hold intermediate results (pushRemappableOop:/popRemappableOop) whose contents the GC updates when it runs. So where is the latent bug in the standard perform primitive?

Interpreter methods for control primitives
primitivePerform

| performSelector newReceiver selectorIndex lookupClass performMethod |

performSelector := messageSelector.

performMethod := newMethod.
        messageSelector
:= self stackValue: argumentCount 1.

newReceiver := self stackValue: argumentCount.

        “NOTE: the following lookup may fail and be converted to #doesNotUnderstand:, so we must adjust argumentCount and slide args now, so that would work.”

        “Slide arguments down over selector”
        argumentCount
:= argumentCount 1.

selectorIndex := self stackPointerIndex argumentCount.

self

transfer: argumentCount

fromIndex: selectorIndex + 1

ofObject: activeContext

toIndex: selectorIndex

ofObject: activeContext.

self pop: 1.

lookupClass := self fetchClassOf: newReceiver.

self findNewMethodInClass: lookupClass.

        “Only test CompiledMethods for argument count – other objects will have to take their chances”
        (
self isCompiledMethod: newMethod)

ifTrue: [self success: (self argumentCountOf: newMethod) = argumentCount].

        successFlag

ifTrue: [self executeNewMethodFromCache.

“Recursive xeq affects successFlag”
                          successFlag
:= true]

ifFalse: [“Slide the args back up (sigh) and re-insert the selector. “

1 to: argumentCount do: [:i | self

storePointer: argumentCount i + 1 + selectorIndex

ofObject: activeContext

withValue: (self fetchPointer: argumentCount i + selectorIndex ofObject: activeContext)].

self unPop: 1.

self storePointer: selectorIndex

ofObject: activeContext

withValue: messageSelector.
                          argumentCount
:= argumentCount + 1.
                          newMethod
:= performMethod.
                          messageSelector
:= performSelector]

Well if the perform is not understood there will be an allocation of a Message within findNewMethodInClass:, which may cause a GC, and if the new method doesn’t have the right number of arguments the statements

                          newMethod
:= performMethod.
                          messageSelector
:= performSelector

may assign invalid pointers to newMethod and messageSelector. It might bite only once in a blue moon but those are the worst kind.

Things are far worse in the StackInterpreter since any send, or assignment to a context instance variable, may cause an entire stack pages worth of contexts to be allocated as a stack page’s frames are divorced so that the page can be reused. It is simply intolerable to live with pushRemappableOop:/popRemappableOop scheme. It has to go, or at least only rear its ugly head occasionally.

The change is to maintain sufficient free space such that we can at least allocate a page worth of contexts, scheduling a GC as soon as we’ve started eating into this reserve, but deferring the garbage collection until a safe point. I won’t bore you wth the details, but there’s a subclass of ObjectMemory called NewObjectMemory that coordinates this providing a set of eeInstantiate* methods (for execution engine) that the VM uses for objects allocated in the course of execution (contexts, closures and messages for doesNotUnderstand:). It then only runs the garbage collector in checkForEventsMayContextSwitch:. The standard allocation primitives primitiveNew and primitiveNewWithArg still use the old scheme which is also provided for plugins so that they don’t have to be rewritten, but inside the interpreter the remapBuffer is shunned entirely.

Proportions, Profiles and Prospects



This stack organization does make a difference all by itself. The StackInterpreter is substantially faster for activation/return benchmarks and insubstantially slower for process switch benchmarks. Here are the results of four benchmarks comparing the StackInterpreter against the standard context Interpreter. Both are compiled using the Intel C compiler and run on my 2.16GHz Intel Core Duo MacBook Pro.

{[self nbody: 200000 to: t1]}
took 5.289 seconds
ratio: 0.69 % change: -30.95%

{[self binarytrees: 15 to: t1]}
took 7.583 seconds
ratio: 0.526 % change: -47.4%

{[self chameneosredux: 260000 to: t1]}
took 7.095 seconds
ratio: 0.837 % change: -16.31%

{[self threadring: 10000000]}
took 8.263 seconds
ratio: 0.948 % change: -5.22%
geometric mean 0.733 average speedup -26.74%

These benchmarks are taken directly from the Squeak versions on the computer language shootout site (thanks Isaac!!).

nbody is a floating-point intensive N-body simulation of the Sun, Jupiter, Saturn, Uranus and Neptune. Some of the speedup (about a third) is due to improvements in the primitive floating point code (the use of compact class indices if you must know).

binarytrees is an allocation heavy binary tree creation and traversal benchmark. It benefits both from the stack organization and the GC changes.

Chameneos is a symbolic computation that compares many pairs of objects in one of three states, the colours red, blue and yellow.

threadring is a thread benchmark that passes a token between 503 Smalltalk processes.

As you can see we get worth-while speedups for everything except threadring, and that threading is not any slower.

Running Qwaq Forums, Qwaq’s business communications solution written in Croquet, we see about a 15% improvement both in loading times and in frame rate. And we’re getting ready to release this VM to the public as I write. I’ll be putting a version for general consumption in a Monticello repository near you real soon now™.

If we compare the profiles of benchFib for the context Interpreter

        /Users/eliot/Qwaq/QFCI1.2.28.app/Contents/MacOS/Qwaq VM eem 12/30/2008 18:31

        39 benchFib

        gc prior. clear prior.
        25.496 seconds; sampling frequency 1465 hz
        37317 samples in the Interpreter         (37347 samples in the entire program) 99.92% of total

        % of interpret (% of total)                                                                        (samples) (cumulative)
        13.46% (13.45%)         L0internalActivateNewMethod                           (5023)         (13.46%)
        12.90% (12.89%)         L0bytecodeDispatch                                                      (4815)         (26.36%)
         6.40% ( 6.39%)         L0internalStoreContextRegisters                           (2387)         (32.76%)
         5.99% ( 5.99%)         L0commonReturn                                                      (2237)         (38.75%)
         5.54% ( 5.53%)         L0lookupInMethodCacheSelclass                           (2067)         (44.29%)
         5.53% ( 5.53%)         L0bytecodePrimAdd                                                      (2065)         (49.83%)
         5.38% ( 5.37%)         L0normalSend                                                               (2007)         (55.21%)
         4.95% ( 4.95%)         L0bytecodePrimSubtract                                             (1847)         (60.15%)
         4.62% ( 4.61%)         L0pushReceiverBytecode                                             (1723)         (64.77%)
         4.21% ( 4.20%)         L0internalFetchContextRegisters                           (1570)         (68.98%)
         3.94% ( 3.94%)         L0pushConstantOneBytecode                                    (1471)         (72.92%)
         3.93% ( 3.92%)         L0recycleContextIfPossible                                    (1465)         (76.85%)
         3.08% ( 3.08%)         L1internalFetchContextRegisters                           (1151)         (79.93%)
         2.86% ( 2.86%)         L0internalQuickCheckForInterrupts                  (1068)         (82.79%)
         2.81% ( 2.81%)         L0pushConstantTwoBytecode                                    (1049)         (85.60%)
         2.63% ( 2.63%)         L0sendLiteralSelectorBytecode                           (981)         (88.23%)
         2.33% ( 2.33%)         L0returnTopFromMethod                                             (869)         (90.56%)
         2.22% ( 2.21%)         L0internalExecuteNewMethod                           (827)         (92.78%)
         2.07% ( 2.07%)         L0booleanCheat                                                               (774)         (94.85%)
         1.68% ( 1.68%)         L0pushReceiverVariableBytecode                           (626)         (96.53%)
         1.46% ( 1.46%)         L0longUnconditionalJump                                             (546)         (97.99%)
         1.17% ( 1.17%)         L0bytecodePrimLessThan                                    (436)         (99.16%)
         0.84% ( 0.84%)         L0storePointerofObjectwithValue                           (312)         (100.0%)
         0.00% ( 0.00%)         ...others...                                                                        (1)         (100.0%)

to that of the StackInterpreter

/Users/eliot/Qwaq/QFSI1.2.28.app/Contents/MacOS/Qwaq VM eem 1/14/2009 12:23
        eden size: 262,144 stack pages: 8

        39 benchFib

        gc prior. clear prior.
        18.282 seconds; sampling frequency 1467 hz
        26575 samples in the Interpreter         (26824 samples in the entire program) 99.07% of total

        % of interpret (% of total)                                                                        (samples) (cumulative)
        20.17% (19.99%)         L0bytecodeDispatch                                                      (5361)         (20.17%)
         9.13% ( 9.05%)         L0internalActivateNewMethod                           (2427)         (29.31%)
         8.87% ( 8.79%)         L0internalFindNewMethod                                    (2357)         (38.17%)
         8.58% ( 8.50%)         L0bytecodePrimAdd                                                      (2279)         (46.75%)
         7.41% ( 7.34%)         L0commonCallerReturn                                             (1968)         (54.16%)
         7.35% ( 7.28%)         L0bytecodePrimSubtract                                             (1952)         (61.50%)
         6.20% ( 6.14%)         L0sendLiteralSelector0ArgsBytecode                  (1647)         (67.70%)
         5.98% ( 5.92%)         L0pushReceiverBytecode                                             (1588)         (73.67%)
         4.77% ( 4.72%)         L0pushConstantOneBytecode                                    (1267)         (78.44%)
         4.24% ( 4.20%)         L0pushConstantTwoBytecode                                    (1126)         (82.68%)
         4.04% ( 4.00%)         L0booleanCheat                                                               (1074)         (86.72%)
         3.71% ( 3.68%)         L0bytecodePrimLessThan                                    (987)         (90.43%)
         2.40% ( 2.38%)         L0pushReceiverVariableBytecode                           (638)         (92.84%)
         2.29% ( 2.27%)         L0internalExecuteNewMethod                           (608)         (95.12%)
         1.86% ( 1.84%)         L0longUnconditionalJump                                             (493)         (96.98%)
         1.77% ( 1.76%)         L0commonReturn                                                      (471)         (98.75%)
         0.66% ( 0.66%)         L0slowPrimitiveResponse                                             (176)         (99.41%)
         0.56% ( 0.56%)         L0returnTopFromMethod                                             (149)         (99.97%)
         0.02% ( 0.02%)         L0baseReturn                                                               (6)         (100.0%)
         0.00% ( 0.00%)         ...others...                                                                        (1)         (100.0%)

we can see where this speedup comes. All of the context management on send and return is substantially cheaper and we see a noticeable increase in the cost of bytecode dispatch, showing that the VM has more time to do real work.

But 15% improvement is nothing for a system that, at least for activation/return benchmarks like benchFib, is some 20 times slower than VisualWorks. The overhead of bytyecode dispatch shows where we have to go next. We need to execute machine code rather than interpret bytecode. We need a JIT.

The StackInterpreter is an intermediate step after closures and before the JIT to ensure steady progress and on-time delivery of a substantially faster VM. The essential point, of course, is that a stack organization suits the use of native call and return instructions whose use, along with in-line cacheing techniques, substantially improve send and return performance. As you can see in my Simulate Out Of The Bochs post I’ve already started work on the JIT and I hope to be far more current in my blog posts about it than I’ve been on the StackInterpreter. Apologies.

I’m already enjoying this year immensely. The JIT, the first I’ve ever written in Smalltalk, is a delight. I hope to blog about it soon.

Thanks for reading.

en.pdf24.org    Send article as PDF
